Product Specification

Description

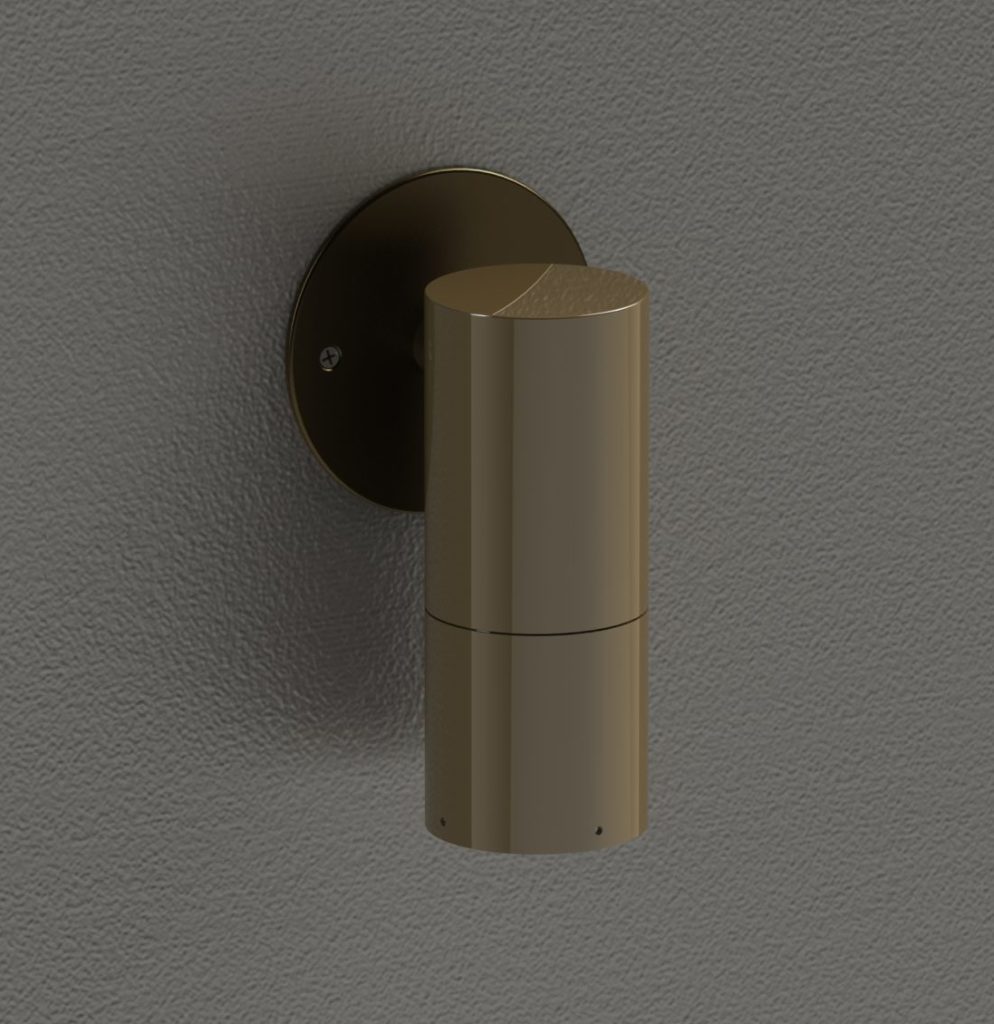

120-277v High Output LED Wall Mount Accent Fixture
Suitable for wet/damp/dry location installations.
Xicato LED version available upon request.

Fixture Type
Wall & Surface Lights

Material
Machined Aluminum

Finish
Black Powder Coat (BK)
Bronze Powder Coat (BZ)
White Powder Coat (WT)
Anodized Satin Aluminum (AA)
Aluminum Powder Coat (AP)

Rating
Dry/Damp/Wet Location

Lamp Types
Integral LED

LED Color, CCT
2700K
3000K
3500K
4000K

Lumen Output
L30 = 11.6W = 1090 lm
L35 = 15.5W = 1450 lm
L40 = 24.5W = 2055 lm

Wattage
L30 = 11.6W = 1090 lm
L35 = 15.5W = 1450 lm
L40 = 24.5W = 2055 lm

Voltage
120-277 Volts

Dimming
ELV/MLV

Transformer
Not Req'd

Mounting
Wall Plate

Size
Body Diameter = 3.0"
Body Length = 7.313"
Wall Plate Diameter = 4.75"
