Specification Sheets
Product Specification
Description

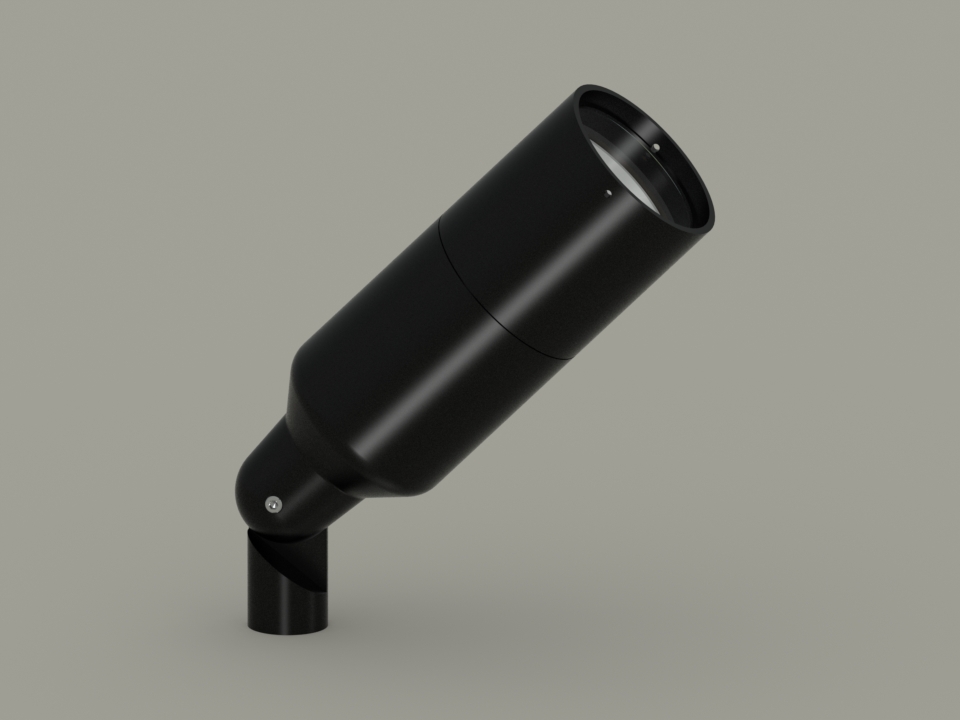

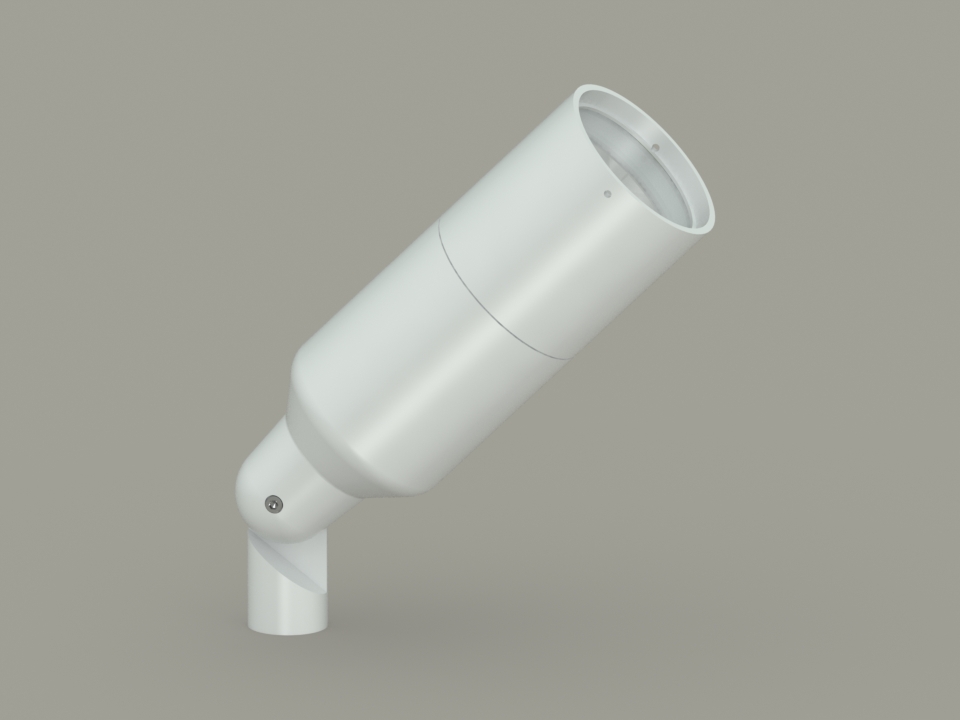

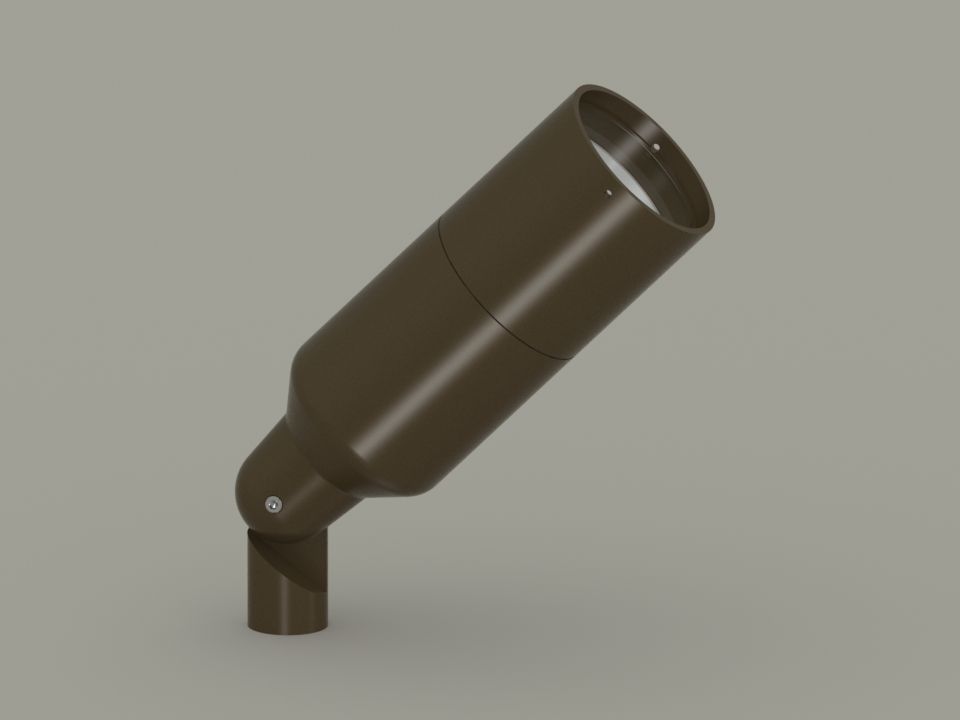

High output adjustable LED accent fixture with LED light source. Requires a remote driver.
Suitable for wet location installations.
120V -- Leading edge / trailing edge dimmable
277V -- 0-10V dimmable only
Fixture Type
Accent Lights
Material
Machined Aluminum
Finish
Black Powder Coat (BK)
Bronze Powder Coat (BZ)
White Powder Coat (WT)
Anodized Satin Aluminum (AA)
Aluminum Powder Coat (AP)
Rating
ETL Listed: Dry/Damp/Wet Location
Lamp Types
Integral LED
LED Color, CCT
2700K
3000K
3500K
4000K
Lumen Output
L30 - 1090 lm
L35 - 1450 lm
L40 - 2055 lm
Wattage
L30 - 11.6W, 350mA, 1090 lm
L35 - 15.5W, 500mA, 1450 lm
L40 - 18.5W, 700mA, 2055 lm
Current
350mA
500mA
700mA
LED Driver
LED Driver Required (Included)
Voltage
120-277 Volts
Dimming
Leading Edge/Trailing Edge
Mounting
1/2 NPS Adjustable Stem
Size
Diameter = 3.00"
Body Length = 8.00"
Stem Length = 2.13"
